Deck Features

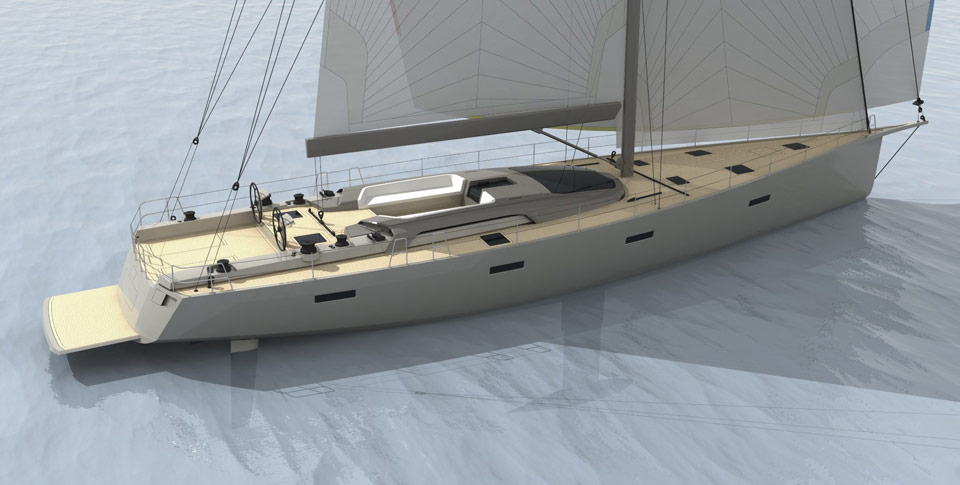

1,5m x 3,2m total 5 m2 bathing platform, electrically operated
Large Hatches and Stowage Area
2 x Containers for Ice Box & Refrigerator
2 x Containers for line tails
Hidden Spray Hood
Electrically Side Sliding Companionway
Single piece chemically tempered Coachroof glass top, nearly 6 m2
Twin Custom Pedestals & Wheels
Removable Cockpit Table
Stainless Steel Footrest in Cockpit
Hidden Air intakes for Engine Room ventilation
Hidden lines and organizers under the Coach Roof structure
2 x Retractable Custom Carbon Composite Davits, capacity 400 kg each
Easy maintenance of lines and organizers
Led Cockpit Lights embedded to the Boom

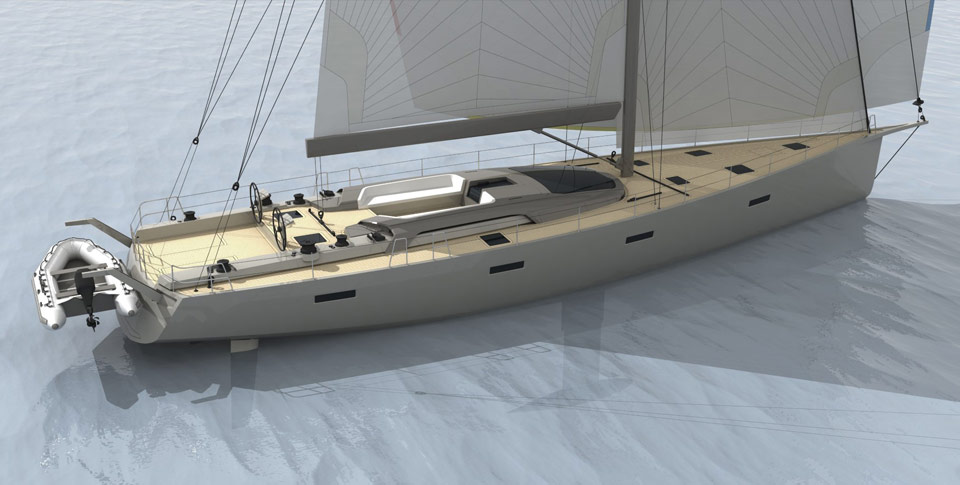

Up to 4.6 meters sportive tender with an outboard of 90 HP (optional)
Main Transom Hatch of width 1.6 meters, which doubles as a seat when opened
Inside Transom Container of D 680mm x W 2400 mm x H 610 mm ;
Safe Housing of LPG for Galley (port side)
A section for trash (starboard side)
Main Section for swimming gears and swimming ladder
Clean Air Compressor for Diving Tubes (optional)
Hydraulic Passerelle also doubles as the ladder to platform
Shore Power, Shore Water and Antenna connections.
WINCHES
| Main Utility Winches |
2 x Harken ST 990 Electrical 3 speed / Self Tail |
1 x Clockwise operating 1 x Counter C operating |
|
Primary Winches |
2 x Harken ST 1111 Electrical 3 speed / Self Tail |
1 x Clockwise operating 1 x Counter C operating |
|
Base Sheaves Under Primaries |
2 x Carbon |
|
|
Runner Winches |
2 x Harken ST 990 Electrical 3 speed / Self Tail |
1 x Clockwise operating 1 x Counter C operating |
|
All ST 990 with Carbon top and Alu BaseAll ST 1111 wit Carbon top and base |
DECK GEARS
|
Self Tacking Jib |
Harken |
|
|
Main Sheet |
Hydraulic Outhall Hydraulic Vang Hydraulic Main Sheet Traveller |
HOLMATRO |
|
Bow |
Harken High Load Padeyes With Soft Attachments |
|
|
Mast Base |
Harken Sheaves & Blocks |
|
|
Organizers |
Custom Fabricated |
With Harken Sheaves |
|
Jammers |
Spinlock |
|
|
Tracks |
Harken |
|
|
Snach Block & Pedeyes |
Harken | |
|
Furling |
Reckman Underdeck Hydraulic |
|
|
Code 0 Furler |
Harken | |
|
All Harken Equipments are equivalent of VOR 70 |
ELECTRONICS
|
Main System |
Raymarine |
|
Radar |
Raymarine Digital, 40 miles |
|
ChartPlotters |
2 x Raymarine |
|
GPS |
Raymarine |
|
Displays |
Raymarine |
|
Displays on Mast |
4 x B&G or SIMRAD |
|
Auto Pilot |
Raymarine or SIMRAD |
|
Communications |
Raymarine & ICOM |
|
High Gain 3G Antenna |
Huwaei |
|
3G WIFI |
Huwaei |
|
Entertainments Electronics |
SONY or BOSE |
|
TV Monitors |
SONY or SAMSUNG |
DOMESTIC
|
Fresh Water Maker |
Spectra |
|
Waste System |
Custom Separate Tanks per cabin |
|
Heads |
Tecma |
|
Air Conditioning |
4 x Cruiseair |
|
Refrigerators, Deep Freeze Ice Maker |
2 x Vitrifrigo 1 x Custom |
|
Oven & Cooktop |
Gaggenau 90 cm |
ELECTRICAL
|
Generator |
1 x 17 KW |
Onan Cummins Diesel QD |
|
1 x 4,5 KW |
Main Engine |
|
|
Main System |
Mastervolt |
|
|
Batteries |
Mastervolt |
|
|
Inverters |
Mastervolt |
|
|
Sockets |
Bticino or Vimar |
|
|
Monitoring |
Mastervolt |
|
|
Lighting |
LED |
